For applications demanding exceptional dimensional accuracy, superior surface quality, and reliable performance, a precision ground bar is the definitive material choice. A ground bar is a high-precision round or flat steel bar that has undergone a centerless grinding process to achieve exacting tolerances, a smooth finish, and uniform straightness. It is the go-to material for manufacturing critical components such as shafts, pins, dies, tools, and complex mechanical assemblies where fit and function are non-negotiable.

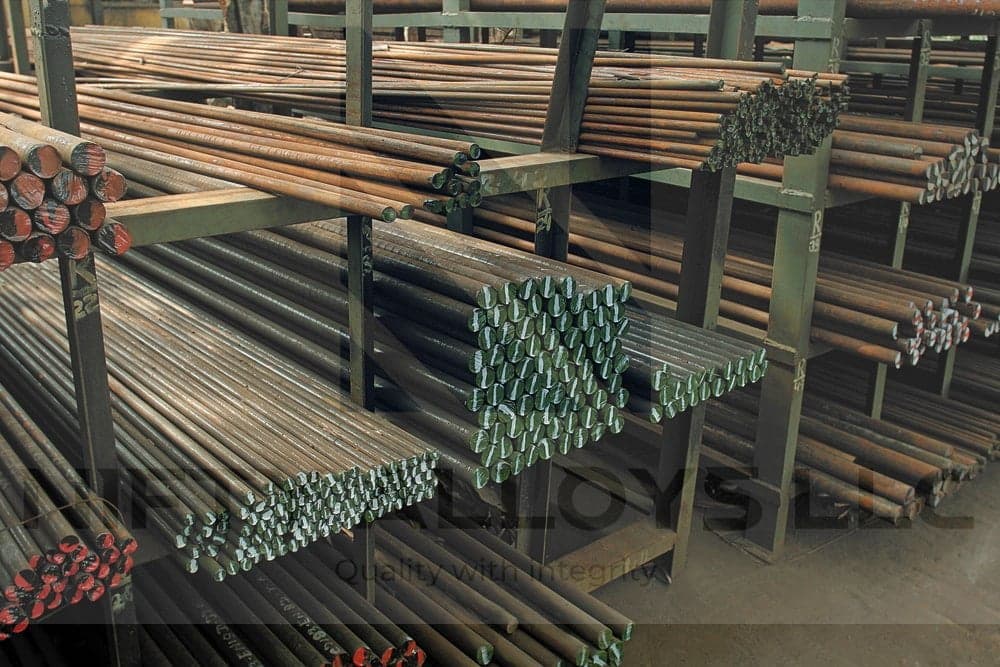

Nifty Alloys LLC is a premier stockist and supplier of precision ground bars in a comprehensive range of steel grades, diameters, and tolerances. We provide engineers, machinists, and fabricators with certified materials that deliver unparalleled benefits, including tight dimensional control, excellent surface integrity, consistent straightness, and enhanced machinability. Our commitment is to supply ground bar stock that meets your most stringent project requirements.

What Is a Ground Bar?

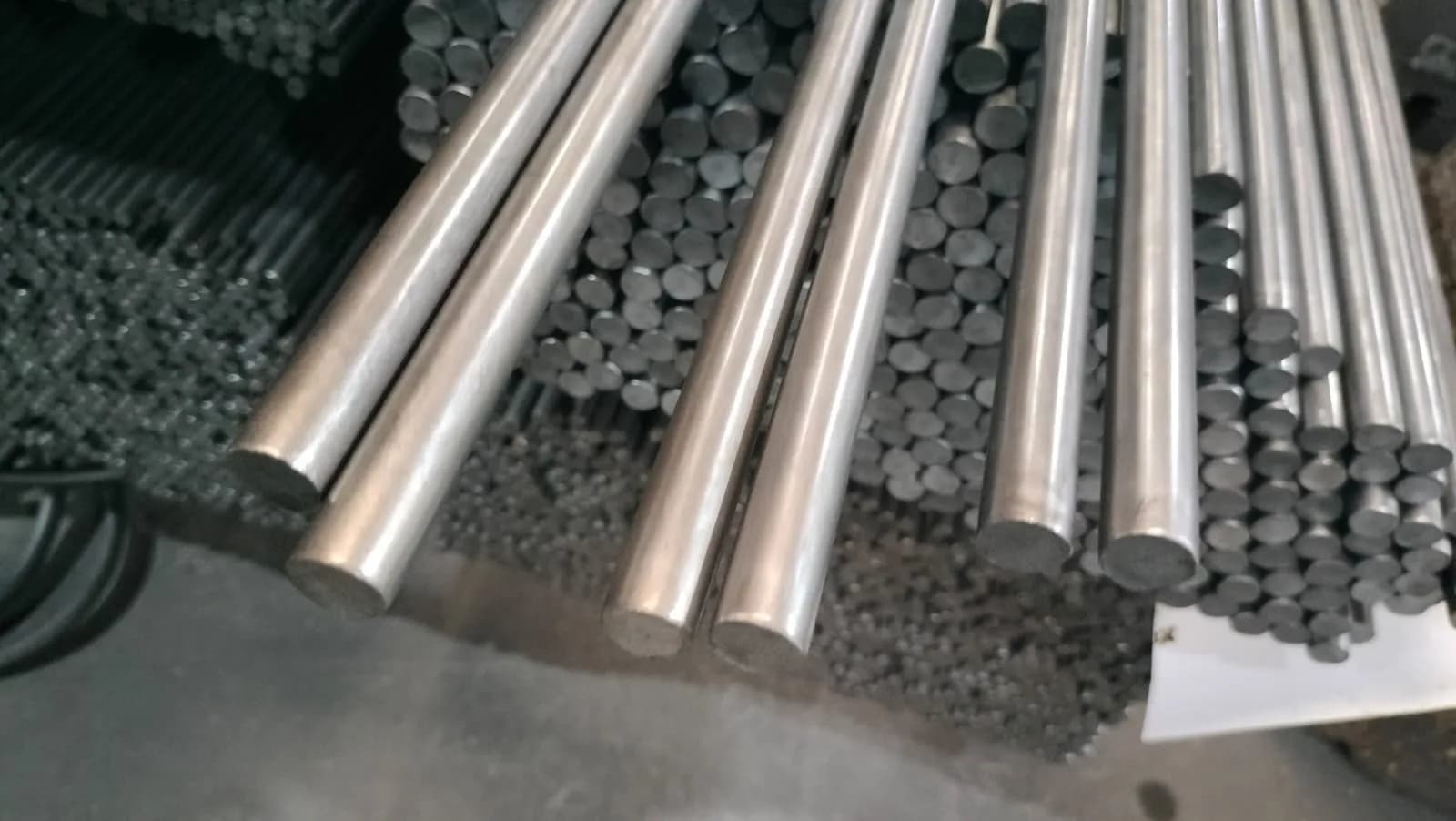

A ground bar is a type of steel bar stock that has been manufactured to precise dimensional and surface specifications through a grinding process. Unlike standard hot-rolled or cold-drawn bars, a ground bar undergoes secondary finishing, typically centerless grinding, which removes surface imperfections, decarburization layers, and minor dimensional variations. The result is a bar with exceptional roundness, strict diameter control, and a smooth, often polished, surface.

This level of precision is critical in applications where components must fit together perfectly, move with minimal friction, or withstand high cyclical stresses. For example, a bearing must fit onto a shaft with an exact clearance to function correctly; a precision ground bar ensures this fit is achieved consistently. By starting with a ground bar, you eliminate the need for extensive preliminary machining, reducing production time and ensuring the final component meets its design specifications with confidence. Its dimensional stability and superior surface finish distinguish it from hot-rolled, peeled, or drawn bars, making it the superior choice for high-performance engineering.

How Ground Bars Are Made

The manufacturing of a precision ground bar is a multi-stage process designed to refine a standard steel bar into a high-tolerance, finished product. Each step is critical for achieving the final material properties and dimensional accuracy required for demanding applications.

• Hot Rolling or Forging: The process begins with raw steel, which is heated and formed into a round or flat bar through hot rolling or forging. This initial step creates the basic shape of the bar.
• Heat Treatment (Optional): Depending on the grade and intended application, the bar may undergo heat treatment processes like annealing, normalizing, or quenching and tempering. This step refines the steel's grain structure, enhances its mechanical properties, improves machinability, and relieves internal stresses.
• Peeling or Turning: Before grinding, the bar's outer surface is machined in a process called peeling or turning. This removes the rough, oxidized surface layer (mill scale) left over from hot rolling, creating a clean and uniform surface for the subsequent grinding operation.
• Centerless Grinding: This is the core process that defines a ground bar. The bar is fed between two abrasive grinding wheels—a high-speed grinding wheel and a slower regulating wheel—without being mounted on centers. This technique removes a very fine layer of material, achieving an extremely precise diameter, excellent roundness, and a smooth surface finish. Multiple passes may be performed to reach the target tolerance.
• Straightening and Inspection: After grinding, the bars are passed through a straightening machine to ensure they meet strict straightness tolerances. Each bar is then inspected for dimensional accuracy, surface quality, and other specified parameters using advanced metrology equipment.
• Polishing (Optional): For applications requiring an even finer surface finish, such as for hydraulic pistons or linear guide rods, the bars may undergo an additional polishing step. This creates a mirror-like surface that minimizes friction and wear.

The outcome of this meticulous process is a dimensionally accurate, perfectly straight, and smooth-surfaced bar that is ready for precision machining or direct use in an assembly.

Key Features and Benefits

Choosing a precision ground bar for your project provides a host of engineering and manufacturing advantages that translate to better performance and lower overall costs.

• Accurate Diameters and Tight Tolerances: With tolerances available up to h6, ground bars ensure precise fits and clearances, eliminating guesswork and rework.
• Smooth, Polished Finish: The low Ra surface finish reduces friction and wear, making it ideal for dynamic applications like shafts and guide rods.
• Excellent Straightness and Roundness: Uniform geometry along the bar's length ensures smooth rotation and linear movement, preventing vibration and premature failure.
• Stress-Relieved and Dimensionally Stable: Proper processing ensures the material is stable and will not warp or deform during or after machining.
• Improved Fatigue Strength: The removal of surface defects and the smooth finish from grinding enhance the material's resistance to fatigue cracking.
• Ready-to-Use: Ground bars often require minimal or no further surface machining, saving valuable production time and resources.
• Available in Multiple Steel Grades: A wide selection of materials allows you to match the bar's mechanical and chemical properties to your exact application needs.

By using ground bars, you achieve consistent fit, superior surface integrity, and long service life for your critical mechanical components.
