Selecting the correct stainless steel grade is a critical decision that directly impacts the performance, longevity, and safety of components in demanding industrial applications. The comparison of 17-4 PH vs 316 stainless steel is a frequent topic among engineers and procurement managers, as both materials offer excellent qualities but serve distinctly different purposes. The choice often comes down to a fundamental trade-off: exceptional strength versus superior corrosion resistance.

For industries ranging from oil & gas and aerospace to chemical processing and marine engineering, understanding the difference between 17-4 and 316 stainless steel is essential for optimizing component design and ensuring operational reliability. This guide provides a detailed technical comparison of their properties, applications, and performance characteristics to help you make an informed decision for your project.

17-4 PH vs 316 Stainless Steel – Chemical Composition

The distinct performance of these two alloys begins with their chemical makeup. 17-4 PH is a precipitation-hardening martensitic stainless steel, while 316 is an austenitic grade. The presence and proportion of elements like chromium, nickel, molybdenum, and copper define their mechanical strength, corrosion resistance, and response to heat treatment.

This table highlights the key chemical distinctions between the two grades. The higher nickel and molybdenum content in 316 stainless steel enhances its corrosion resistance, particularly against chlorides. Conversely, the copper and niobium additions in 17-4 PH enable its unique precipitation-hardening capabilities, which are responsible for its very high strength.

Microstructure & Hardening Mechanism

The way each steel achieves its final properties is fundamentally different, rooted in its metallurgical structure.

17-4 PH Stainless Steel

17-4 PH is a martensitic precipitation-hardening (PH) stainless steel. Its impressive strength is not inherent but is developed through a two-step heat treatment process:

• Solution Annealing: The material is heated to a high temperature (around 1040°C or 1900°F) to dissolve the alloying elements into a uniform solid solution, followed by rapid cooling to form a martensitic structure.
• Aging (Precipitation Hardening): The steel is then reheated to a lower temperature (e.g., 482°C to 621°C or 900°F to 1150°F) for a specific duration. This "aging" treatment causes fine copper-rich precipitates to form within the steel's matrix, which obstructs dislocation movement and significantly increases strength and hardness. Common conditions include H900, H1025, and H1150, with H900 offering the highest strength and H1150 providing better ductility and stress corrosion resistance.

316 Stainless Steel

In contrast, 316 is an austenitic stainless steel. Its microstructure is face-centered cubic (FCC), which makes it non-magnetic in the annealed condition and not hardenable by heat treatment. Its strength can only be increased through mechanical means, such as cold rolling or drawing. This process, known as work hardening, introduces dislocations into the crystal structure, increasing its tensile and yield strength but reducing its ductility.

Mechanical Properties Comparison

The most significant difference between 17-4 and 316 stainless steel lies in their mechanical properties. 17-4 PH is engineered specifically for applications demanding exceptional strength.

As the data clearly shows, the 17-4 PH stainless steel properties in the heat-treated condition far exceed those of annealed 316. Its yield strength can be up to four times higher, making it a premier choice for stainless steel for high strength components. However, this high strength comes at the cost of ductility. Grade 316 is significantly more ductile and formable, allowing it to be bent, stretched, and shaped without fracturing.

Corrosion Resistance – Industrial vs. Marine Environments

When evaluating which is better, 17-4 or 316, the service environment is a decisive factor.

• Chlorides & Seawater: Grade 316 is the clear winner in marine and high-chloride environments. The addition of 2-3% molybdenum provides superior resistance to pitting and crevice corrosion caused by chloride ions, which are abundant in seawater and coastal areas. This makes it the standard for stainless steel for marine applications.
• Chemical Processing: The enhanced corrosion resistance of 316, especially against acids and other corrosive chemicals, makes it a staple in chemical and pharmaceutical processing plants.
• General & Industrial Atmospheres: 17-4 PH offers good general corrosion resistance, comparable to grade 304 stainless steel. It performs well in mildly corrosive industrial environments. However, it is susceptible to chloride stress corrosion cracking (SCC), particularly in its higher strength conditions (like H900) and at elevated temperatures. In applications where both high strength and significant chloride exposure are present, duplex stainless steels may be a more suitable alternative.

Common Uses of 17-4 PH Stainless Steel

The exceptional strength of 17-4 PH makes it ideal for mechanically demanding roles.

• Aerospace and defense components, including landing gear parts, structural fittings, and engine mounts.
• High-strength shafts, fasteners, and gears for industrial machinery.
• Valve parts, pump shafts, and components in the oil & gas industry.
• Molds, dies, and tooling that require high wear resistance and hardness.
• Food processing equipment components where high strength and moderate corrosion resistance are sufficient.

Common Uses of 316 Stainless Steel

The superior corrosion resistance and formability of 316 define its primary applications.

• Marine hardware, boat fittings, and components for seawater cooling systems.
• Chemical and petrochemical processing equipment, including tanks, piping, and reactors.
• Food and beverage processing equipment and pharmaceutical manufacturing machinery.
• Medical and surgical implants and instruments due to its biocompatibility and corrosion resistance.
• Architectural components in coastal and polluted environments.
• Heat exchangers, condensers, and pressure vessels.

Use-Case vs. Recommended Grade

This quick-reference table helps you match your application's primary requirement to the most suitable grade.

How to Choose Between 17-4 PH and 316 Stainless Steel

Your final selection should be based on a clear understanding of your application's operational demands.

Choose 17-4 PH if:

• Your primary requirement is exceptionally high strength, hardness, and wear resistance.
• The component will be heat treated to a specific condition (e.g., H900, H1025) to achieve desired mechanical properties.
• The service environment is industrial, atmospheric, or only mildly corrosive, with minimal exposure to chlorides.

Choose 316 if:

• Your primary requirement is superior corrosion resistance.
• The application involves direct exposure to seawater, chlorides, or aggressive chemicals.
• Excellent weldability and formability are necessary for fabrication.
• A non-magnetic material is required (in the annealed condition).

Availability & Forms Supplied by Nifty Alloys

Nifty Alloys is a leading stockist and supplier of both 17-4 PH and 316 stainless steel. We provide materials that conform to international standards, ensuring quality and performance for your critical projects. We supply these grades in various forms, including:

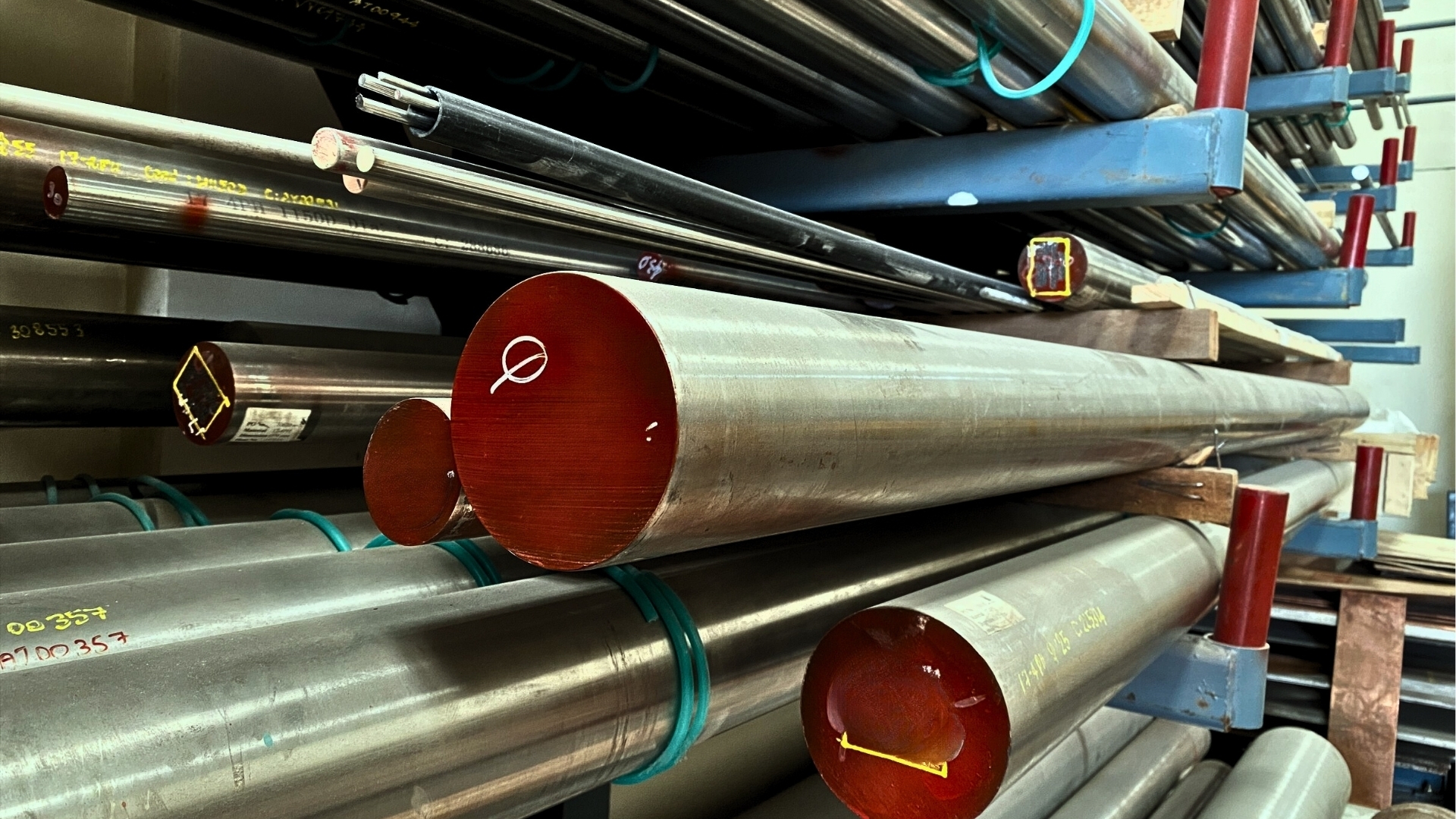

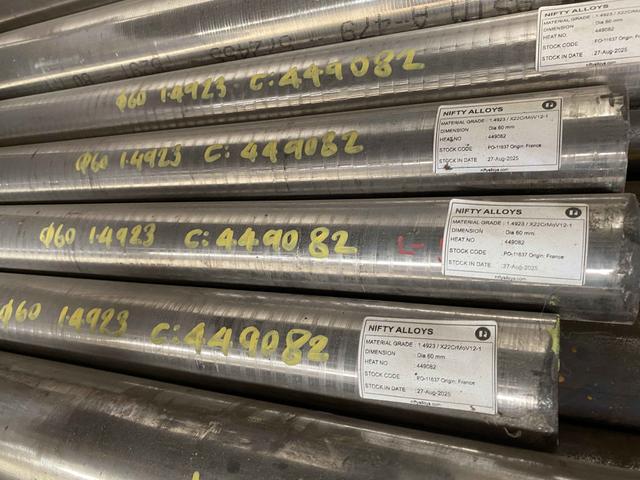

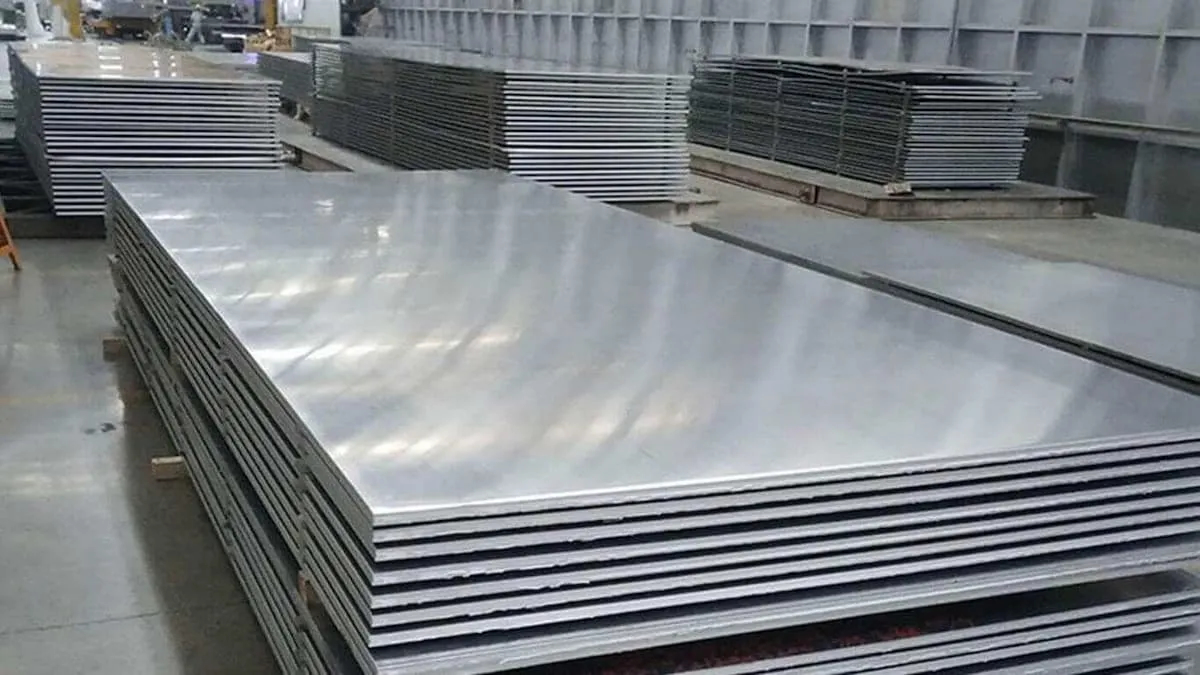

• Round Bars, Flat Bars, and Plates
• Pipes and Tubes
• Materials compliant with EN, ASTM, and ASME standards
• Products available in solution-annealed and specific heat-treated conditions (for 17-4 PH)
• All our materials are supplied with Mill Test Certificates (MTCs) and can be accompanied by third-party inspection reports to guarantee full compliance and traceability.

Why Buy 17-4 PH & 316 Stainless Steel from Nifty Alloys?

As a trusted 316 stainless steel supplier and a specialist in performance alloys, Nifty Alloys is committed to delivering quality and reliability. We maintain a ready stock of both 17-4 PH and 316 stainless steel to ensure fast delivery across the UAE, GCC, and global markets. Our technical team can assist you with material selection, and we offer value-added services like custom cutting to meet your exact specifications. When you partner with Nifty Alloys, you receive certified materials backed by complete documentation and expert support.

Frequently Asked Questions (AEO Optimized)

• What is the difference between 17-4 PH and 316 stainless steel?
  The main difference is that 17-4 PH is a very high-strength, heat-treatable martensitic steel with moderate corrosion resistance, while 316 is a highly corrosion-resistant austenitic steel with lower strength that is not hardenable by heat treatment.
• Which is stronger: 17-4 PH or 316?
  17-4 PH is significantly stronger than 316. In a heat-treated condition like H900, its yield strength can be up to four times greater than that of annealed 316 stainless steel.
• Which stainless steel is better for marine use?
  316 stainless steel is far better for marine use. Its molybdenum content provides excellent resistance to chloride pitting and crevice corrosion, making it the industry standard for seawater applications.
• Is 17-4 PH stainless steel corrosion resistant?
  Yes, 17-4 PH has good general corrosion resistance, comparable to grade 304. It performs well in most industrial and atmospheric environments but is not recommended for high-chloride or marine settings where 316 excels.
• Where can I buy 17-4 PH and 316 stainless steel in the UAE?
  You can buy high-quality, certified 17-4 PH and 316 stainless steel from Nifty Alloys. We are a leading stockist in the UAE, providing a wide range of forms and sizes with fast delivery to local and international clients.

Your Trusted Partner for High-Performance Alloys

Choosing between 17-4 PH and 316 requires a careful evaluation of your project's mechanical and environmental demands. Nifty Alloys is here to ensure you get the right material for the job.  Contact our team today to send an RFQ or for expert assistance in selecting the ideal stainless steel grade for your application. Whether you need a 17-4 PH stainless steel round bar, a reliable 316 Stainless Steel Supplier, or guidance on duplex and other specialty alloys, we are ready to support your project's success.
