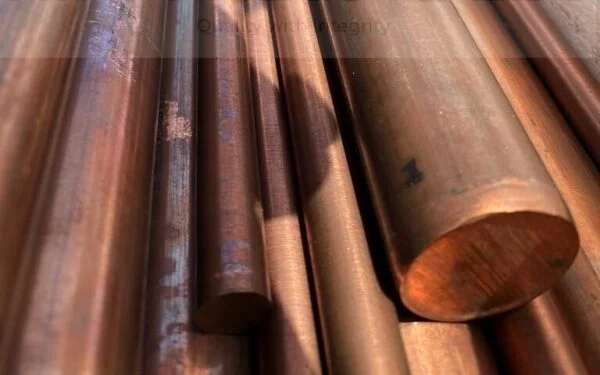

What Is Chromium Copper Alloy (C18200)?

In the world of high-performance conductive materials, finding the perfect balance between electrical conductivity and mechanical strength is a constant engineering challenge. Pure copper offers unmatched conductivity but lacks the hardness and wear resistance required for heavy-duty industrial applications. This is where C18200 chromium copper alloy—widely known as RWMA Class 2 copper alloy—excels.

C18200 is a heat-treatable, high-strength, high-conductivity copper alloy containing a specific amount of chromium. It acts as a bridge between pure electrical copper (C11000) and harder, less conductive structural alloys like beryllium copper. By introducing chromium into the copper matrix, manufacturers create a material that retains much of copper's natural conductivity while significantly boosting its physical durability.

For engineers and technical buyers, C18200 solves the critical problem of component softening. Pure copper softens and deforms at relatively low temperatures, leading to rapid failure in high-heat environments like resistance welding. C18200 maintains its mechanical integrity at elevated temperatures, making it the industry standard for applications requiring high current transfer under mechanical load.

Composition and Key Properties

Understanding the capabilities of C18200 requires a look at its metallurgical makeup. The alloy relies on precipitation hardening to achieve its superior performance characteristics.

Chemical Composition

• The typical chemical composition of C18200 is straightforward but precise:
• Chromium (Cr): Approximately 0.6% to 1.2%
• Copper (Cu): Balance (typically >98.5%)
• Other elements: Trace amounts of iron, silicon, or lead may be present as impurities but are tightly controlled to prevent adverse effects on conductivity.

Precipitation-Strengthened Microstructure

The "magic" of this alloy happens during heat treatment. The chromium is dissolved into the copper at high temperatures and then precipitated out as fine particles during aging. These microscopic precipitates act as barriers to dislocation movement within the metal's crystal lattice. This mechanism drastically increases hardness and strength without severely impeding the flow of electrons, which is why chromium copper properties are so unique.

Mechanical and Physical Properties

While specific values depend on the exact temper (heat treatment condition), general property ranges for fully heat-treated C18200 include:

• Electrical Conductivity: Excellent, typically ranging from 80% to 85% IACS (International Annealed Copper Standard). This is only slightly lower than pure copper (100% IACS) but significantly higher than brass or bronze.
• Thermal Conductivity: High thermal transfer rates allow for rapid heat dissipation, crucial for cooling welding electrodes.
• Tensile Strength: Substantially higher than pure copper, often ranging between 450 to 550 MPa.
• Hardness: Values typically fall between 65 and 75 HRB (Rockwell B). This hardness provides resistance to mechanical wear and deformation.
• Softening Temperature: It resists softening up to approximately 500°C (930°F), far exceeding pure copper, which begins to soften around 200°C.

The Benefit Translation

These technical specifications translate directly into operational benefits:

• High Hardness: Resists mushrooming and deformation under electrode pressure.
• Good Strength: Withstands the mechanical stresses of cyclic loading.
• Conductivity: Ensures efficient energy transfer with minimal resistive heating.
• Thermal Stability: Prevents premature failure in high-heat zones.

Why Choose Chromium Copper Over Pure Copper or Other Alloys?

Selecting a material is often a game of trade-offs. Here is how C18200 compares to other common options in the market.

Vs. Pure Copper (C11000)

Pure copper is the gold standard for conductivity. However, it is soft and mechanically weak. In a resistance welding application, pure copper electrodes would deform (mushroom) almost immediately under the clamping force, altering the contact area and ruining weld consistency. C18200 offers a slight reduction in conductivity (approx. 15-20% loss) for a massive gain in hardness and wear resistance.

Vs. Brasses and Bronzes

Brass and bronze are much harder than copper and easier to machine, but their electrical conductivity is poor (often 15-30% IACS). Using them for high-current applications would result in excessive heat generation within the component itself, leading to energy loss and potential melting. C18200 chromium copper alloy provides the necessary conductivity that brass cannot match, while still offering good wear resistance.

Vs. Tool Steels and Stainless Steels

Steels offer incredible strength and wear resistance but are effectively insulators compared to copper. When the primary function of a component is to extract heat (like in a mold) or pass current (like a contact), steel is unsuitable. C18200 is the ideal middle ground when you need a "strong conductor."

Limitations to Consider

While versatile, C18200 is not a universal solution.

• Cost: It is more expensive than basic copper or brass due to the alloying elements and processing requirements.
• Heat Treatment: To achieve peak properties, it must be properly solution-annealed and aged. Improper heat treatment results in poor hardness.
• Processing: Welding or brazing C18200 can anneal (soften) the heat-affected zone, undoing the benefits of the heat treatment.

 Typical Applications of Chromium Copper Alloy

The unique combination of thermal and electrical performance makes C18200 indispensable across several heavy industries.

Resistance Welding Electrodes and Components

This is the primary application for C18200. As an RWMA Class 2 copper alloy, it is the industry standard material for resistance welding electrodes.

• Electrodes: Used for spot, seam, and projection welding of mild steels, coated steels, and low-alloy steels.
• Structural Parts: Utilized in welder arms, holders, platens, and secondary current-carrying structural members.
• Why it works: Resistance welding involves high currents (thousands of amps), high mechanical pressure, and significant heat generation. C18200 ensures the electrode retains its shape (geometry) over thousands of weld cycles, maintaining consistent current density and weld nugget quality.

Electrical Contacts and Conductive Components

In power transmission and distribution, reliability is non-negotiable.

• Switchgear: Used in high-voltage circuit breaker contacts where arcing can occur.
• Connectors: Employed in heavy-duty connectors, cable clamps, and switch terminals.
• Bus Bars: Selected for specialized bus bar sections requiring higher strength than standard copper bars.
• Why it works: Pure copper contacts can erode or stick due to electrical arcing. C18200 resists arc erosion and mechanical wear, extending the maintenance intervals of critical switchgear. It acts as a high-strength copper alloy for electrical contacts that pure copper cannot support.

Tooling, Molds, and High-Temperature Components

The plastics and metal casting industries rely on rapid heat removal to improve cycle times.

• Injection Molding: Used for mold inserts, cores, and cooling pins.
• Casting: Utilized in plunger tips for die casting machines.
• Why it works: Thermal conductivity is the key driver here. A steel mold core removes heat slowly, lengthening the "cooling time" portion of the injection cycle. Replacing steel with C18200 draws heat away from the plastic part rapidly, significantly reducing cycle time and boosting productivity. Its hardness ensures it doesn't wash out or wear down quickly under the flow of molten plastic.

Industrial, Automotive, and Aerospace Components

Beyond electrical and tooling uses, C18200 finds a home in general mechanical engineering.

• Automotive: Parts for resistance welding robots and specialized electrical connectors in EVs.
• Aerospace: Components requiring non-magnetic properties combined with strength.
• Machinery: Bearings, bushings, and wear plates that must conduct heat away from friction zones.

 Advantages and Limitations of Chromium Copper

To make an informed purchasing decision, it is essential to weigh the pros and cons of this specific alloy.

Key Advantages

• Balanced Performance: It hits the "sweet spot" between the conductivity of pure copper and the strength of structural metals.
• Extended Component Life: In welding and switching applications, components last significantly longer than those made of pure copper, reducing downtime for replacements.
• High-Temperature Stability: It resists softening at temperatures where other copper alloys would fail, ensuring reliability in hot environments.
• Productivity Gains: In molding applications, the superior thermal transfer rates directly increase production output by shortening cycle times.

Key Limitations

• Processing Sensitivity: The properties are heavily dependent on correct heat treatment. If the material is overheated during machining or brazing, it loses its strength permanently unless heat-treated again.
• Machinability: While machinable, it is "gummy" compared to free-machining brass. It requires specific tooling geometry and parameters to machine effectively.
• Cost: It represents a higher initial investment than commodity copper, though this is usually offset by the Total Cost of Ownership (TCO) through longer life spans.

C18200 is most cost-effective in critical applications where component failure leads to expensive downtime or quality issues. The initial material cost is negligible compared to the cost of a stopped production line.

How to Select the Right Chromium Copper Grade and Temper

While C18200 is a standardized alloy, not all bars or plates are created equal. The "temper" (condition of heat treatment and cold work) dictates the final performance.

Key Selection Factors

When specifying C18200 chromium copper alloy, consider the following:

• Operating Temperature: If your application involves sustained temperatures above 450°C, ensure the grade selected has been optimally heat-treated for high-temperature stability.
• Required Conductivity: Verify the % IACS on the Mill Test Report (MTR). For electrodes, higher is generally better, but never at the expense of hardness.
• Mechanical Loading: If the part serves as a structural member (like a welder arm), tensile strength becomes a priority over peak conductivity.
• Form vs. Function: Are you buying rod, bar, or plate? Ensure the supplier offers the correct form to minimize machining waste.

C18150 vs C18200: A Common Comparison

Engineers often debate C18150 vs C18200.

• C18200 (Chromium Copper): The general-purpose workhorse. Excellent for most spot welding of mild steels and general conductive applications. It is widely available and cost-effective.
• C18150 (Chromium Zirconium Copper): Contains a small addition of zirconium. This element raises the softening temperature further and prevents the copper from sticking to coated steels (like galvanized sheets).
  • Select C18150 if you are welding galvanized steel or need even higher resistance to softening.
  • Select C18200 for standard applications where wear resistance and mechanical strength at moderate temperatures are the primary drivers.

 Practical Tips for Engineers, Buyers, and Maintenance Teams

Ensuring you get the most out of your C18200 components requires attention to detail from procurement to maintenance.

• Define the Failure Mode: Before ordering, ask: "How did the last part fail?" If it deformed, you need hardness (C18200). If it melted or overheated, you might need pure copper (if strength permits) or a check on your cooling system.
• Request Mill Test Reports (MTRs): Always demand certification. A reliable supplier like Nifty Alloys LLC ensures every batch is traceable. You need to see the chemical composition and the conductivity figures to confirm you are buying genuine Class 2 alloy.
• Watch the Heat Input: If you are machining or modifying C18200 parts in-house, ensure your team uses plenty of coolant. Overheating the part during grinding or turning can anneal the surface, ruining the hardness you paid for.
• Match Temper to Duty: "As-manufactured" properties vary. Communicate your application to your supplier. They can guide you toward the specific temper that balances ductility and hardness for your specific use case.
• Check Dimensions and Tolerances: Precision matters. Buying material closer to your final size reduces machining time and stress on the material.
• Collaborate with Experts: Do not guess on critical specs. Work with material partners who understand the nuance of copper alloy that resists deformation at high temperature. Their expertise can save you from costly trial-and-error.

Frequently Asked Questions

These FAQs address common queries regarding C18200 performance, composition, and suitability for high-stress applications.

What is C18200 chromium copper primarily used for?

• C18200 is predominantly specified for applications requiring a combination of strength and conductivity. Key uses include resistance welding electrodes, welder arms, and holders (RWMA Class 2 applications). It is also widely used for electrical switchgear contacts, high-voltage connectors, and injection mold components where rapid heat removal is critical.

How much chromium does C18200 contain?

• The alloy typically consists of a copper balance with a chromium content ranging from 0.6% to 1.2%. This specific addition allows the alloy to undergo precipitation hardening, significantly improving its mechanical properties without severely compromising its electrical conductivity.

What are the main advantages of C18200 over pure copper?

• While pure copper offers maximum conductivity, it is too soft for many industrial uses. C18200 provides superior tensile strength, hardness, and wear resistance, along with much greater stability at elevated temperatures. It resists deformation under load, making it far more durable than pure copper in demanding environments.

Can C18200 chromium copper be heat treated?

• Yes. C18200 is a heat-treatable alloy. It undergoes solution heat treatment followed by aging (precipitation hardening) and often cold working. This process develops its high mechanical strength and hardness while restoring its electrical conductivity to useful levels (typically 80–85% IACS).

Is C18200 suitable for continuous high-temperature service?

• C18200 maintains its properties well up to approximately 500°C (930°F), far exceeding the softening point of pure copper. It is suitable for applications involving short-term exposure to high heat, such as resistance welding, or continuous service in moderately elevated temperatures, provided the operational limits are respected.

What is the difference between C18150 and C18200?

• Both are high-conductivity alloys, but C18150 (Chromium Zirconium Copper) includes zirconium, which further increases the softening temperature and resistance to sticking on coated steels. C18200 is the standard general-purpose RWMA Class 2 alloy, ideal for most welding and tooling needs where extreme softening resistance is less critical than general strength and cost-effectiveness.

How is C18200 chromium copper fabricated?

• This alloy can be machined, forged, and cold-worked (bent, drawn, or swaged). However, because it is harder than pure copper, fabrication requires specific tooling and parameters. Care must be taken during machining to avoid excessive heat generation, which could anneal the material and reduce its hardness.

Where is C18200 commonly specified?

• C18200 is a global standard material, commonly specified as UNS C18200 or RWMA Class 2. It is ubiquitous in the resistance welding industry, electrical power transmission (switchgear), and the manufacturing of plastic molds and mechanical components requiring high thermal transfer.

Why Choose Nifty Alloys for C18200 and Other Alloys?

Nifty Alloys LLC is a specialized stockist and supplier dedicated to supporting industrial projects with high-performance materials. We bridge the gap between complex technical requirements and reliable supply chain execution.

• Certified Quality Assurance: We understand that material failure is not an option. All our C18200 chromium copper and special alloys come with full Mill Test Reports (MTRs), ensuring complete traceability and compliance with international standards such as ASTM, RWMA, and DIN.
• Comprehensive Inventory: Beyond chromium copper, we stock a broad range of stainless steels, nickel alloys, and aluminium bronzes. Our inventory is tailored to meet the urgent and diverse needs of the oil & gas, marine, power, and manufacturing sectors.
• Technical Expertise: Selecting the right alloy involves more than just a part number. Our team provides expert guidance on equivalent grades and specifications, helping you match the precise material properties to your application’s demands.
• Commitment to Service: From hard-to-find specifications to custom cutting and machining, we offer value-added services that streamline your procurement process. We partner with you to ensure on-time delivery and operational success.

For procurement professionals who value reliability, compliance, and technical support, Nifty Alloys is your trusted partner for premium industrial metals.

Conclusion

C18200 Chromium Copper is more than just a metal; it is an engineered solution for high-stress electrical and thermal environments. By bridging the gap between the conductivity of pure copper and the durability of structural alloys, it enables modern manufacturing processes—from high-speed resistance welding to rapid injection molding—to run efficiently and reliably. Whether you are designing a new switchgear assembly or sourcing replacement electrodes for a welding line, choosing the right grade of C18200 is critical. Focus on certified quality, verify the technical specifications, and partner with a supplier that prioritizes traceability and expertise. With the right material in hand, you ensure operational stability and long-term performance.
